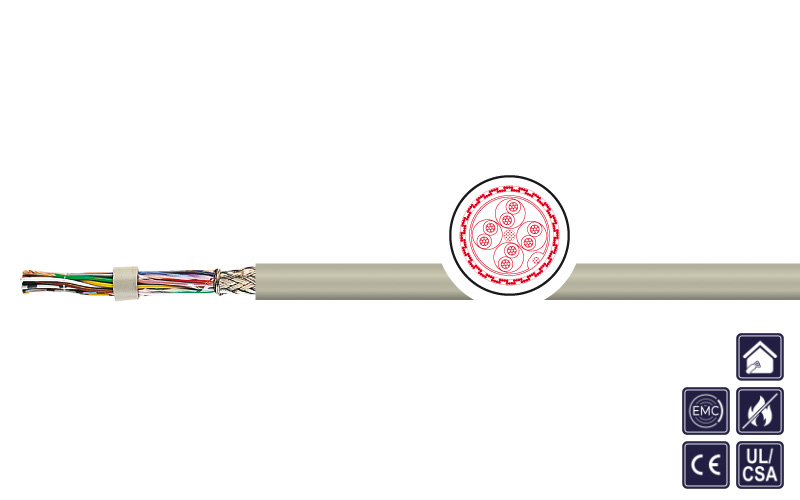

Use of cable

UL/CSA approved data transmission cable, control and connecting cable predominantly for transmission of analog and digital signals in process controlled facilities in measurement and control technology for lossless data and signal transmission. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.

Special features

  • twisted pairs
  • largely resistant to acids, bases and specified types of oil
  • LABS-/silicone-free (during production)
  • recommended for EMC-applications
  • adapted to connectors according DIN 41612 resp. VG Norm95324 also D-Sub according MIL-C24308 and capable for soldering, crimp and cut-and-clamp

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Copper strand tinned
Conductor class: 7 wired; AWG28/7 = 7 x 0,13 mm (0,09 mm²); AWG24/7 = 7 x 0,203 mm (0,22 mm²)
Core insulation: AWG24: special SR-PVC (Semi-Rigid-PVC); AWG28: special-PVC
Core identification: Acc. to DIN 47100 different colours, with repetition from 23rd pair
Stranding: 2 cores twisted to a pair; pairs stranded in layers
Shield3: Copper braid tinned; coverage approx. 85% with subjacent tinned drain wire
Outer sheath: PVC
Sheath colour: Grey, RAL 7032
Rated voltage: AWG28/7 = 250 V acc. to VDE; 30 V acc. to UL style 2560; AWG24/7 = 300 V acc. to VDE and UL style 2464
Testing voltage: 1.2 kV
Conductor resistance: On AWG28/7 < 250 Ω/km; on AWG24/7 < 130 Ω/km
Insulation resistance: Min. 200 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE, s. Techn. Guidelines
Min. bending radius fixed: Up to 12 mm Ø 5 x d; up to 20 mm Ø 7,5 x d; > 20 mm Ø 10 x d
Min. bending radius moved: Up to 12 mm Ø 10 x d; up to 20 mm Ø 15 x d; > 20 mm Ø 20 x d
Operat. temp. fixed min/max: -30 °C / +80 °C; acc. to UL -5 °C / +60 °C
Operat. temp. moved min/max: -5 °C / +70 °C; acc. to UL -5 °C / +60 °C
Burning behavior: Self-extinguishing & flame-retardant acc.to IEC 60332-1
Standard: UL style 2560 (AWG28/7) resp. UL style 2464 (AWG 24/7)
Approvals: UL/CSA: AWG28/7: 60 °C - 30 V; AWG24/7: 60 °C - 300 V

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
0500091 2 X 2 X AWG 24/7 (0,22 mm²) 6,5 17,0 40,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500096 3 X 2 X AWG 24/7 (0,22 mm²) 6,8 24,0 50,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500100 4 X 2 X AWG 24/7 (0,22 mm²) 6,9 43,5 65,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500104 5 X 2 X AWG 24/7 (0,22 mm²) 7,9 46,4 88,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500105 7 X 2 X AWG 24/7 (0,22 mm²) 8,9 78,0 113,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500081 10 X 2 X AWG 24/7 (0,22 mm²) 10,1 98,0 140,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500080 12 X 2 X AWG 24/7 (0,22 mm²) 11,1 110,0 155,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500085 16 X 2 X AWG 24/7 (0,22 mm²) 12,2 142,0 195,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500088 20 X 2 X AWG 24/7 (0,22 mm²) 12,8 168,0 235,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500092 30 X 2 X AWG 24/7 (0,22 mm²) 15,4 258,0 325,0 grey V1: DATATRONIC-CY (TP) UL 2464 / CSA
0500103 5 X 2 X AWG 28/7 (0,09 mm²) 5,3 22,0 48,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0500106 8 X 2 X AWG 28/7 (0,09 mm²) 6,2 29,0 68,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0506559 10 X 2 X AWG 28/7 (0,09 mm²) 6,6 31,8 91,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0500083 13 X 2 X AWG 28/7 (0,09 mm²) 7,4 42,0 116,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0500082 16 X 2 X AWG 28/7 (0,09 mm²) 8,0 48,0 130,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0507316 18 X 2 X AWG 28/7 (0,09 mm²) 8,1 53,0 140,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0500084 19 X 2 X AWG 28/7 (0,09 mm²) 8,2 54,0 145,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0500087 25 X 2 X AWG 28/7 (0,09 mm²) 9,3 68,0 198,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0500093 32 X 2 X AWG 28/7 (0,09 mm²) 9,9 90,0 240,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0500094 34 X 2 X AWG 28/7 (0,09 mm²) 9,8 95,0 255,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
0500098 48 X 2 X AWG 28/7 (0,09 mm²) 11,4 122,0 290,0 grey V2: DATATRONIC-CY (TP) UL 2560 / CSA
