Use of cable

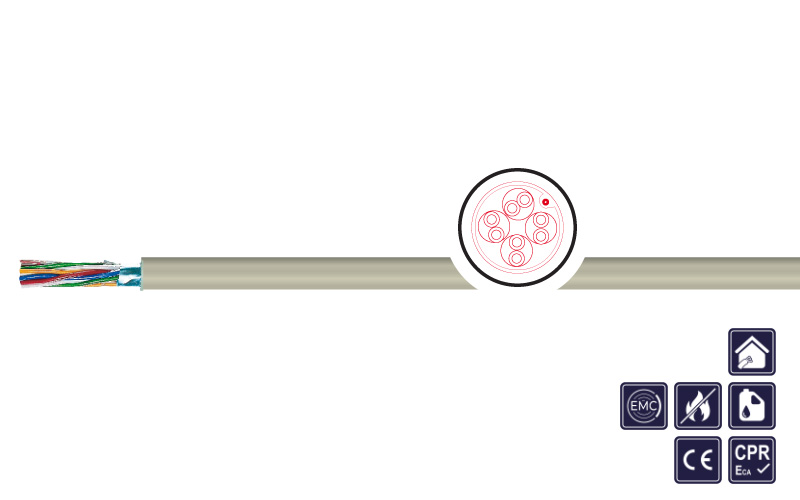

installation cable with electrostatic shield for telecommunication and IT-systems for lossless transmission of datas and signals. Suitable for fixed laying in dry and humid rooms, on-wall and in-wall, outdoor use, no laying underground.

Special features

  • shielded by plastic-clad aluminium foil
  • pairs stranded in layers (Lg)
  • largely resistant to acids, bases and usual oils
  • free from lacquer damaging substances and silicone (during production)
  • also available: JYY Bd. or J-Y(St)Y Lg BMK n x 2 x 0,8 mm as fire alarm cable with red outer sheath

Remarks

  • conform to RoHS
  • conform to 2006/95/EC-Guideline CE.
  • installation cables are not designed for high voltage purposes and are not suitable for laying underground
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
Conductor material: Copper conductor blank
Conductor class: Conductor-Ø 0,6 mm (0,28 mm²), conductor-Ø 0,8 mm (0,50 mm²)
Core insulation: PVC
Core identification: Acc. to DIN VDE 0815 different colours
Stranding: Pairs stranded in layers (2-pair-cable also possible as star quad)
Shield3: Plastic-clad aluminium foil with subjacent drain wire
Outer sheath: PVC
Sheath colour: Grey, RAL 7032 (fire alarm cable: red)
Rated voltage: 300 V
Testing voltage: 800 V
Conductor resistance: Loop: 0,6 max. 130 Ω / km; 0,8 max. 73,2 Ω / km
Insulation resistance: Min. 100 MΩ x km
Current-carrying-capacity: Acc. to DIN VDE, s. Techn. Guidelines
Capacity: Max. 100 nF/km
Min. bending radius fixed: 7,5 x d
Min. bending radius moved: 10 x d
Operat. temp. fixed min/max: -30 °C / +70 °C
Operat. temp. moved min/max: - 5 °C / +50 °C
Burning behavior: Self-extinguishing & flame-retardant acc.to IEC 60332-1
Standard: Acc. to DIN VDE 0815

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2000181 1 X 2 X 0,6 5,0 6,9 30,0 grey V1: J-Y(ST)Y LG
2000186 2 X 2 X 0,6 5,5 13,0 40,0 grey V1: J-Y(ST)Y LG
2000190 3 X 2 X 0,6 6,3 18,0 50,0 grey V1: J-Y(ST)Y LG
2000194 4 X 2 X 0,6 6,8 24,0 60,0 grey V1: J-Y(ST)Y LG
2000198 5 X 2 X 0,6 7,2 30,0 70,0 grey V1: J-Y(ST)Y LG
2000199 6 X 2 X 0,6 7,5 35,0 80,0 grey V1: J-Y(ST)Y LG
2000202 8 X 2 X 0,6 8,0 46,0 90,0 grey V1: J-Y(ST)Y LG
2000178 10 X 2 X 0,6 9,0 58,0 110,0 grey V1: J-Y(ST)Y LG
2000923 12 X 2 X 0,6 9,5 71,0 130,0 grey V1: J-Y(ST)Y LG
2002960 14 X 2 X 0,6 10,0 82,0 145,0 grey V1: J-Y(ST)Y LG
2000504 16 X 2 X 0,6 10,5 93,0 160,0 grey V1: J-Y(ST)Y LG
2000183 20 X 2 X 0,6 11,0 116,0 190,0 grey V1: J-Y(ST)Y LG
2002961 24 X 2 X 0,6 11,5 139,0 220,0 grey V1: J-Y(ST)Y LG
2000189 30 X 2 X 0,6 13,0 172,0 280,0 grey V1: J-Y(ST)Y LG
2000192 40 X 2 X 0,6 15,0 229,0 350,0 grey V1: J-Y(ST)Y LG
2000197 50 X 2 X 0,6 17,0 286,0 430,0 grey V1: J-Y(ST)Y LG
2002269 60 X 2 X 0,6 18,0 342,0 500,0 grey V1: J-Y(ST)Y LG
2002962 80 X 2 X 0,6 20,5 455,0 640,0 grey V1: J-Y(ST)Y LG
2000177 100 X 2 X 0,6 23,0 568,0 850,0 grey V1: J-Y(ST)Y LG
2000503 1 X 2 X 0,8 6,0 11,0 40,0 grey V1: J-Y(ST)Y LG
2000187 2 X 2 X 0,8 7,0 21,0 60,0 grey V1: J-Y(ST)Y LG
2000191 3 X 2 X 0,8 8,5 31,0 80,0 grey V1: J-Y(ST)Y LG
2000195 4 X 2 X 0,8 9,0 41,0 100,0 grey V1: J-Y(ST)Y LG
2000563 5 X 2 X 0,8 9,5 52,0 120,0 grey V1: J-Y(ST)Y LG
2000200 6 X 2 X 0,8 10,5 62,0 140,0 grey V1: J-Y(ST)Y LG
2000203 8 X 2 X 0,8 11,5 82,0 170,0 grey V1: J-Y(ST)Y LG
2000179 10 X 2 X 0,8 13,0 102,0 220,0 grey V1: J-Y(ST)Y LG
2000335 12 X 2 X 0,8 14,0 123,0 250,0 grey V1: J-Y(ST)Y LG
2002966 14 X 2 X 0,8 14,6 144,0 280,0 grey V1: J-Y(ST)Y LG
2001111 16 X 2 X 0,8 15,5 164,0 320,0 grey V1: J-Y(ST)Y LG
2000184 20 X 2 X 0,8 16,5 204,0 380,0 grey V1: J-Y(ST)Y LG
2000921 24 X 2 X 0,8 19,0 244,0 460,0 grey V1: J-Y(ST)Y LG
2000358 30 X 2 X 0,8 20,0 304,0 560,0 grey V1: J-Y(ST)Y LG
2001173 40 X 2 X 0,8 22,5 405,0 710,0 grey V1: J-Y(ST)Y LG
2000332 50 X 2 X 0,8 25,5 506,0 900,0 grey V1: J-Y(ST)Y LG
2002970 60 X 2 X 0,8 28,0 606,0 1.050,0 grey V1: J-Y(ST)Y LG
2002971 80 X 2 X 0,8 31,0 807,0 1.400,0 grey V1: J-Y(ST)Y LG
2002375 100 X 2 X 0,8 32,0 1.008,0 1.750,0 grey V1: J-Y(ST)Y LG
2000182 1 X 2 X 0,8 6,0 11,0 40,0 red V2: J-Y(ST)Y LG BMK
2000188 2 X 2 X 0,8 7,0 21,0 60,0 red V2: J-Y(ST)Y LG BMK
2000888 3 X 2 X 0,8 8,5 31,0 80,0 red V2: J-Y(ST)Y LG BMK
2000196 4 X 2 X 0,8 9,0 41,0 100,0 red V2: J-Y(ST)Y LG BMK
2002581 5 X 2 X 0,8 9,5 52,0 120,0 red V2: J-Y(ST)Y LG BMK
2000201 6 X 2 X 0,8 10,5 62,0 140,0 red V2: J-Y(ST)Y LG BMK
2002963 8 X 2 X 0,8 11,5 82,0 170,0 red V2: J-Y(ST)Y LG BMK
2000180 10 X 2 X 0,8 13,0 102,0 220,0 red V2: J-Y(ST)Y LG BMK
2002964 12 X 2 X 0,8 14,0 123,0 123,0 red V2: J-Y(ST)Y LG BMK
2002965 14 X 2 X 0,8 14,6 144,0 280,0 red V2: J-Y(ST)Y LG BMK
2002967 16 X 2 X 0,8 15,6 164,0 320,0 red V2: J-Y(ST)Y LG BMK
2000185 20 X 2 X 0,8 16,5 204,0 380,0 red V2: J-Y(ST)Y LG BMK
2002968 24 X 2 X 0,8 19,0 244,0 460,0 red V2: J-Y(ST)Y LG BMK
2001226 30 X 2 X 0,8 20,0 304,0 560,0 red V2: J-Y(ST)Y LG BMK
2000193 40 X 2 X 0,8 22,5 405,0 710,0 red V2: J-Y(ST)Y LG BMK
2001164 50 X 2 X 0,8 25,5 506,0 900,0 red V2: J-Y(ST)Y LG BMK
2002969 60 X 2 X 0,8 28,0 606,0 1.050,0 red V2: J-Y(ST)Y LG BMK
2002972 80 X 2 X 0,8 31,0 807,0 1.400,0 red V2: J-Y(ST)Y LG BMK
2002973 100 X 2 X 0,8 32,0 1.008,0 1.750,0 red V2: J-Y(ST)Y LG BMK
