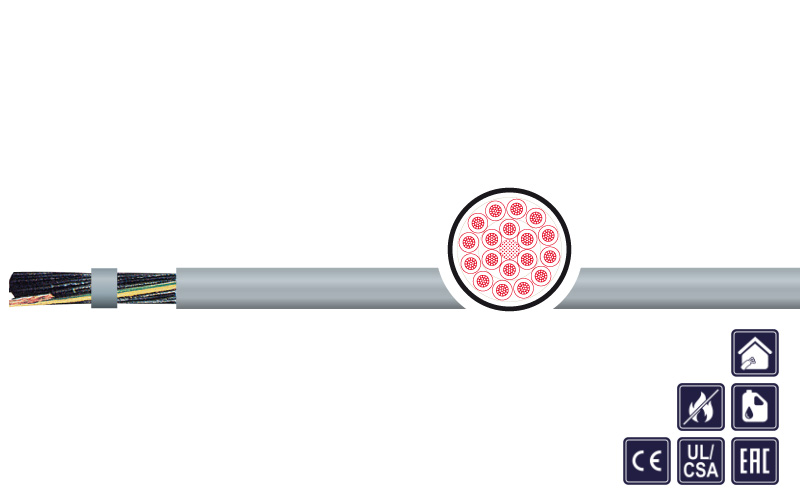

Flexible control cables
ÖPVC-OZ-Yö 1.000 V
ID: 01.01.04.02
450/750V (IEC), 1.000V (UL), unshielded UL/CSA
Use of cable
power, control and connecting cable in electrical facilities when increased mineral oil resistance is required. For fixed laying and flexible applications, without tensile stress and without cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection and no laying underground.
Special features
- increased oil resistant and largely resistant to acids and bases
- improved behaviour in case of fire (acc. to IEC 60332-3-24 (Cat. C), CEI 20-22 II 00 and NBN C30-004 Cat. F2, CSA FT1)
- 6 kV testing voltage
- LABS-/silicone-free (during production)
Remarks
- conform to RoHS
- conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
- also available with coloured cores acc. to DIN-VDE 0293-308 with or without GN/YE
- In case of mechanical damage risk, consider to install the cable with a protection like tubes, channels etc.
| Conductor material: | Bare copper strand |
|---|---|
| Conductor class: | Acc. to IEC 60228 cl. 5 |
| Core insulation: | PVC |
| Core identification: | Acc. to DIN VDE 0293 black cores with white numerals with or without GNGE |
| Stranding: | Stranded in layers |
| Outer sheath: | PVC |
| Sheath colour: | Grey, RAL 7001 |
| Rated voltage: | UL: 1.000 V; IEC: 450/750 V |
| Testing voltage: | 6 kV |
| Conductor resistance: | Acc. to IEC 60228 class 5 |
| Insulation resistance: | Min. 20 MΩ x km |
| Current-carrying-capacity: | Acc. to DIN VDE |
| Min. bending radius fixed: | 4 x d |
| Min. bending radius moved: | 15 x d |
| Operat. temp. fixed min/max: | -40 °C / +80 °C |
| Operat. temp. moved min/max: | -5 °C / +80 °C |
| Burning behavior: | Self-extinguishing acc. to IEC 60332-1, reduced fire propagation and flame retardant acc. to IEC 60332-3-24, CEI 20-22 II and NBN C30-004 Cat. F2, CSA FT1 |
| Standard: | UL-Style 2570 / CSA AWM I A/B II A/B |
| Approvals: | CURus: 80 °C - 1000 V |
Table of items
|
Product No.
|
Dimension
[n x mm²] |
Outer-Ø
[mm] |
Cu-Index
[kg/km] |
Weight
[kg/1.000] |
Sheath colour
|
Variant
|
|---|---|---|---|---|---|---|
| 1001171 | 2 X 0,5 | 5,0 | 9,6 | 34,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001172 | 3 G 0,5 | 5,3 | 14,4 | 41,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001173 | 3 X 0,5 | 5,3 | 14,4 | 41,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001174 | 4 G 0,5 | 5,7 | 19,2 | 49,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001176 | 4 X 0,5 | 5,7 | 19,2 | 49,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001177 | 5 G 0,5 | 6,3 | 24,0 | 64,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001181 | 5 X 0,5 | 6,3 | 24,0 | 64,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001184 | 6 G 0,5 | 6,8 | 28,8 | 75,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001188 | 7 G 0,5 | 6,8 | 33,6 | 78,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001200 | 7 X 0,5 | 6,8 | 33,6 | 78,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001201 | 8 G 0,5 | 8,1 | 38,4 | 105,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001202 | 9 G 0,5 | 8,4 | 43,2 | 116,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001203 | 10 G 0,5 | 8,4 | 48,0 | 121,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001206 | 12 G 0,5 | 8,7 | 57,6 | 139,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001208 | 14 G 0,5 | 9,5 | 67,2 | 154,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001209 | 16 G 0,5 | 9,6 | 76,8 | 172,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001210 | 18 G 0,5 | 10,4 | 86,4 | 199,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001211 | 19 G 0,5 | 10,8 | 91,2 | 202,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001212 | 24 G 0,5 | 12,1 | 115,2 | 266,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001213 | 25 G 0,5 | 12,1 | 120,0 | 270,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001214 | 34 G 0,5 | 14,3 | 163,2 | 378,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001215 | 37 G 0,5 | 14,3 | 177,6 | 388,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001216 | 42 G 0,5 | 15,3 | 201,6 | 441,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001221 | 50 G 0,5 | 16,8 | 240,0 | 536,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001232 | 56 G 0,5 | 18,4 | 268,8 | 590,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001233 | 61 G 0,5 | 18,7 | 292,8 | 620,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001234 | 2 X 0,75 | 5,4 | 14,4 | 42,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001237 | 3 G 0,75 | 5,7 | 21,6 | 51,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001238 | 4 G 0,75 | 6,2 | 28,8 | 66,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001239 | 5 G 0,75 | 6,8 | 36,0 | 80,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001240 | 6 G 0,75 | 7,4 | 43,2 | 99,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001241 | 7 G 0,75 | 7,4 | 50,4 | 104,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001242 | 8 G 0,75 | 7,6 | 57,6 | 136,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001243 | 9 G 0,75 | 9,2 | 64,8 | 150,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001244 | 10 G 0,75 | 9,2 | 72,0 | 160,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001245 | 12 G 0,75 | 9,5 | 86,4 | 177,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001246 | 14 G 0,75 | 10,6 | 100,8 | 204,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001247 | 16 G 0,75 | 10,7 | 115,2 | 227,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001248 | 18 G 0,75 | 11,4 | 129,6 | 262,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001249 | 19 G 0,75 | 12,0 | 136,8 | 267,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001253 | 24 G 0,75 | 13,3 | 172,8 | 347,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001254 | 25 G 0,75 | 13,3 | 180,0 | 356,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001255 | 34 G 0,75 | 15,7 | 244,8 | 495,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001256 | 37 G 0,75 | 15,7 | 266,4 | 510,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001257 | 42 G 0,75 | 17,8 | 302,4 | 589,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001259 | 50 G 0,75 | 18,4 | 360,0 | 700,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001260 | 56 G 0,75 | 20,6 | 403,2 | 787,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001261 | 61 G 0,75 | 20,9 | 439,2 | 827,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001264 | 2 X 1 | 5,7 | 19,2 | 49,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001266 | 3 G 1 | 6,1 | 28,8 | 64,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001270 | 4 G 1 | 6,6 | 38,4 | 79,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1002579 | 4 X 1 | 6,6 | 38,4 | 79,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001271 | 5 G 1 | 7,2 | 48,0 | 95,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001273 | 6 G 1 | 7,8 | 57,6 | 116,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001276 | 7 G 1 | 7,,8 | 67,2 | 123,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001279 | 8 G 1 | 9,5 | 76,8 | 161,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001280 | 9 G 1 | 10,0 | 86,4 | 179,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001282 | 10 G 1 | 10,0 | 96,0 | 196,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001283 | 12 G 1 | 10,3 | 115,2 | 217,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001284 | 14 G 1 | 11,2 | 134,4 | 244,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001285 | 16 G 1 | 11,4 | 153,6 | 279,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001287 | 18 G 1 | 12,3 | 172,8 | 313,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001288 | 19 G 1 | 12,7 | 182,4 | 320,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1002154 | 20 G 1 | 13,0 | 192,0 | 355,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001289 | 24 G 1 | 14,3 | 230,4 | 426,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001294 | 25 G 1 | 14,3 | 240,0 | 432,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1002157 | 26 G 1 | 15,3 | 249,6 | 454,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001299 | 34 G 1 | 16,9 | 326,4 | 602,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001301 | 37 G 1 | 16,9 | 355,2 | 622,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001307 | 42 G 1 | 19,2 | 403,2 | 721,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001308 | 50 G 1 | 19,9 | 480,0 | 856,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001310 | 56 G 1 | 22,1 | 537,6 | 958,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001320 | 61 G 1 | 22,4 | 585,6 | 1.008,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001323 | 2 X 1,5 | 6,3 | 28,8 | 68,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001324 | 3 G 1,5 | 6,7 | 43,2 | 84,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001330 | 4 G 1,5 | 7,3 | 57,6 | 108,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001333 | 5 G 1,5 | 8,0 | 72,0 | 131,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001334 | 6 G 1,5 | 8,7 | 86,4 | 160,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001344 | 7 G 1,5 | 8,7 | 100,8 | 171,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001345 | 8 G 1,5 | 10,8 | 115,2 | 221,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001346 | 9 G 1,5 | 11,2 | 129,6 | 245,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001347 | 10 G 1,5 | 11,2 | 144,0 | 269,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001348 | 12 G 1,5 | 11,5 | 172,8 | 298,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001349 | 14 G 1,5 | 12,7 | 201,6 | 336,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001350 | 16 G 1,5 | 13,0 | 230,4 | 385,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001354 | 18 G 1,5 | 14,4 | 259,2 | 433,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001356 | 19 G 1,5 | 14,4 | 273,6 | 443,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001357 | 24 G 1,5 | 16,0 | 345,6 | 583,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001360 | 25 G 1,5 | 16,0 | 360,0 | 594,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1002158 | 26 G 1,5 | 17,2 | 619,0 | 619,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001363 | 34 G 1,5 | 19,2 | 489,6 | 827,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001364 | 37 G 1,5 | 19,2 | 532,8 | 858,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001365 | 42 G 1,5 | 21,6 | 604,8 | 989,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001366 | 50 G 1,5 | 23,0 | 720,0 | 1.190,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001381 | 56 G 1,5 | 25,1 | 806,4 | 1.328,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001384 | 61 G 1,5 | 25,4 | 878,4 | 1.398,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001386 | 2 X 2,5 | 7,5 | 48,0 | 105,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001389 | 3 G 2,5 | 8,0 | 72,0 | 132,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001392 | 4 G 2,5 | 8,7 | 96,0 | 167,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
| 1001395 | 5 G 2,5 | 9,6 | 120,0 | 205,0 | grey | V0: ÖPVC-JZ/OZ-ö 1.000 V UL/CSA |
