Fleksibilni upravljački kabeli

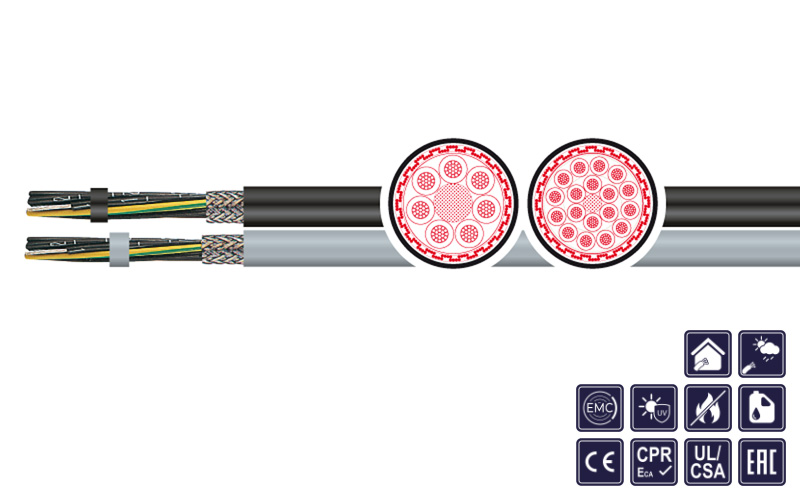

2-NORM-CY +UV 1.000V GREY | BLACK
ID: 01.02.06.01
300/500V (IEC), 1.000V (UL), shielded , UL/CSA, CPR Eca
Use of cable
power, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms (also water-oil mixture). Outdoor use (only black type), but no laying underground.
Special features
- resistant to oil, largely resistant to acids and bases
- LABS-/silicon-free (during production)
- due to 1.000 V UL/CSA approval parallel laying with other 1.000 V cables is permitted
- recommended for EMC-applications
- black type: UV-resistant
Remarks
- conform to RoHS
- conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
- VDE production-expertise (VDE-Reg)
| Conductor material: | Bare copper strand |
|---|---|
| Conductor class: | Acc. to IEC 60228 cl. 5 |
| Core insulation: | PVC, 90 °C acc. to UL 1581 |
| Core identification: | Black with white numerals, with (G) or without (X) GNYE |
| Stranding: | Stranded in layers |
| Shield3: | Copper braid tinned; coverage approx. 85 % |
| Outer sheath: | PVC, 90° C acc. to UL 1581 |
| Sheath colour: | Black, RAL 9005 or grey RAL 7001 |
| Rated voltage: | UL/CSA: 1.000 V, VDE: 300/500 V |
| Testing voltage: | 6 kV |
| Conductor resistance: | Acc. to IEC 60228 cl. 5 |
| Min. bending radius fixed: | 6 x d |
| Min. bending radius moved: | 20 x d |
| Operat. temp. fixed min/max: | -40 °C / +90 °C |
| Operat. temp. moved min/max: | -5 °C / +90 °C |
| Burning behavior: | Self-extinguishing acc. to IEC 60332-1, flame retardant acc. to IEC 60332-3-24 (Cat. C), CSA FT1, UL VW1, CEI 20-22 II and NBN C30-004 Cat. F2 |
| Resistant to oil: | Acc. to DIN EN 50290-2-22 resp. VDE 0819-102 TM54 |
| Approvals: | UL/CSA: cURus - 90 °C / 1.000 V; VDE production-expertise (VDE-Reg) |
Table of items
|
Product No.
|
Dimension
[n x mm²] |
Outer-Ø
[mm] |
Cu-Index
[kg/km] |
Weight
[kg/1.000] |
Sheath colour
|
Variant
|
|---|---|---|---|---|---|---|
| 1005051 | 2 X 0,5 (AWG 21) | 5,6 | 25,0 | 47,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005052 | 3 G 0,5 (AWG 21) | 5,9 | 31,0 | 54,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005053 | 4 G 0,5 (AWG 21) | 6,3 | 39,0 | 68,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005054 | 5 G 0,5 (AWG 21) | 6,9 | 44,0 | 79,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005055 | 7 G 0,5 (AWG 21) | 7,4 | 59,0 | 97,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005056 | 12 G 0,5 (AWG 21) | 9,3 | 94,0 | 149,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005057 | 18 G 0,5 (AWG 21) | 11,0 | 128,0 | 210,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005058 | 25 G 0,5 (AWG 21) | 12,7 | 165,0 | 273,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005059 | 34 G 0,5 (AWG 21) | 15,1 | 231,0 | 381,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005060 | 2 X 0,75 (AWG 19) | 6,0 | 30,0 | 54,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005061 | 3 G 0,75 (AWG 19) | 6,3 | 43,0 | 68,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005062 | 4 G 0,75 (AWG 19) | 6,8 | 51,0 | 80,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005063 | 5 G 0,75 (AWG 19) | 7,4 | 63,0 | 113,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005064 | 7 G 0,75 (AWG 19) | 8,0 | 79,0 | 118,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005065 | 12 G 0,75 (AWG 19) | 10,3 | 127,0 | 188,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005066 | 18 G 0,75 (AWG 19) | 12,2 | 179,0 | 272,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005067 | 25 G 0,75 (AWG 19) | 14,3 | 252,0 | 374,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005068 | 34 G 0,75 (AWG 19) | 16,7 | 325,0 | 493,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005069 | 2 X 1 (AWG 18) | 6,3 | 37,0 | 65,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005070 | 3 G 1 (AWG 18) | 6,7 | 49,0 | 77,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005071 | 4 G 1 (AWG 18) | 7,2 | 62,0 | 97,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005072 | 5 G 1 (AWG 18) | 7,8 | 73,0 | 113,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005073 | 7 G 1 (AWG 18) | 8,4 | 97,0 | 141,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005074 | 12 G 1 (AWG 18) | 10,9 | 155,0 | 224,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005075 | 18 G 1 (AWG 18) | 12,9 | 219,0 | 320,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005076 | 25 G 1 (AWG 18) | 15,1 | 308,0 | 440,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005077 | 34 G 1 (AWG 18) | 17,7 | 412,0 | 590,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005078 | 2 X 1,5 (AWG 16) | 6,9 | 48,0 | 79,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005079 | 3 G 1,5 (AWG 16) | 7,3 | 68,0 | 100,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005080 | 4 G 1,5 (AWG 16) | 7,9 | 84,0 | 121,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005081 | 5 G 1,5 (AWG 16) | 8,6 | 102,0 | 147,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005082 | 7 G 1,5 (AWG 16) | 9,3 | 135,0 | 185,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005083 | 12 G 1,5 (AWG 16) | 12,3 | 218,0 | 302,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005084 | 18 G 1,5 (AWG 16) | 14,8 | 325,0 | 454,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005085 | 25 G 1,5 (AWG 16) | 17,0 | 434,0 | 595,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005086 | 34 G 1,5 (AWG 16) | 20,0 | 584,0 | 798,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005087 | 2 X 2,5 (AWG 14) | 8,1 | 71,0 | 111,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005088 | 3 G 2,5 (AWG 14) | 8,6 | 100,0 | 142,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005089 | 4 G 2,5 (AWG 14) | 9,3 | 128,0 | 179,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005090 | 5 G 2,5 (AWG 14) | 10,4 | 153,0 | 219,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005091 | 7 G 2,5 (AWG 14) | 11,3 | 207,0 | 278,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005092 | 12 G 2,5 (AWG 14) | 15,2 | 356,0 | 476,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005093 | 18 G 2,5 (AWG 14) | 17,9 | 514,0 | 693,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005094 | 4 G 4 (AWG 12) | 11,1 | 193,0 | 262,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005095 | 5 G 4 (AWG 12) | 12,3 | 236,0 | 321,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005096 | 7 G 4 (AWG 12) | 13,6 | 326,0 | 422,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005097 | 4 G 6 (AWG 10) | 13,2 | 288,0 | 384,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005098 | 5 G 6 (AWG 10) | 14,7 | 355,0 | 471,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005099 | 7 G 6 (AWG 10) | 16,1 | 480,0 | 604,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005100 | 4 G 10 (AWG 8) | 16,9 | 460,0 | 616,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005101 | 4 G 16 (AWG 6) | 19,5 | 705,0 | 891,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005102 | 4 G 25 (AWG 4) | 24,6 | 1.081,0 | 1.380,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005103 | 4 G 35 (AWG 2) | 27,7 | 1.487,0 | 1.823,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005104 | 4 G 50 (AWG 1) | 33,6 | 2.136,0 | 2.645,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005113 | 4 G 70 (AWG 2/0) | 39,7 | 3.229,0 | 4.490,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1005114 | 4 G 95 (AWG 3/0) | 47,2 | 4.010,0 | 5.540,0 | grey | V1: 2-NORM-CY 1.000V UL/CSA |
| 1002162 | 2 X 0,5 (AWG 21) | 5,6 | 25,0 | 47,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002165 | 3 G 0,5 (AWG 21) | 5,9 | 31,0 | 54,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002166 | 4 G 0,5 (AWG 21) | 6,3 | 39,0 | 68,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002183 | 5 G 0,5 (AWG 21) | 6,9 | 44,0 | 79,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002185 | 6 G 0,5 (AWG 21) | 7,0 | 59,0 | 117,1 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002186 | 7 G 0,5 (AWG 21) | 7,4 | 59,0 | 97,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002187 | 8 G 0,5 (AWG 21) | 7,4 | 157,4 | 157,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002188 | 9 G 0,5 (AWG 21) | 8,5 | 80,4 | 169,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002189 | 10 G 0,5 (AWG 21) | 8,9 | 85,2 | 179,2 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002190 | 12 G 0,5 (AWG 21) | 9,3 | 94,0 | 149,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002191 | 14 G 0,5 (AWG 21) | 11,6 | 104,4 | 209,5 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002192 | 16 G 0,5 (AWG 21) | 12,4 | 118,6 | 241,9 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002193 | 18 G 0,5 (AWG 21) | 11,0 | 128,0 | 210,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002194 | 19 G 0,5 (AWG 21) | 13,4 | 137,7 | 274,2 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002195 | 21 G 0,5 (AWG 21) | 14,7 | 151,9 | 321,2 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002196 | 25 G 0,5 (AWG 21) | 12,7 | 165,0 | 273,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002198 | 27 G 0,5 (AWG 21) | 16,4 | 185,4 | 374,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002199 | 30 G 0,5 (AWG 21) | 13,8 | 214,0 | 338,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002200 | 32 G 0,5 (AWG 21) | 17,1 | 214,0 | 438,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002201 | 34 G 0,5 (AWG 21) | 15,1 | 231,0 | 381,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002202 | 35 G 0,5 (AWG 21) | 18,0 | 233,1 | 477,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002203 | 37 G 0,5 (AWG 21) | 15,1 | 249,0 | 399,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002204 | 40 G 0,5 (AWG 21) | 19,2 | 257,1 | 542,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002205 | 41 G 0,5 (AWG 21) | 16,1 | 277,0 | 450,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002206 | 42 G 0,5 (AWG 21) | 16,1 | 282,0 | 457,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002207 | 50 G 0,5 (AWG 21) | 17,6 | 327,0 | 527,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002208 | 56 G 0,5 (AWG 21) | 21,7 | 347,8 | 737,2 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002209 | 61 G 0,5 (AWG 21) | 18,4 | 382,0 | 609,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002210 | 2 X 0,75 (AWG 19) | 6,0 | 30,0 | 54,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002211 | 3 G 0,75 (AWG 19) | 6,3 | 43,0 | 68,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002212 | 4 G 0,75 (AWG 19) | 6,8 | 51,0 | 80,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002213 | 5 G 0,75 (AWG 19) | 7,4 | 63,0 | 99,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002214 | 6 G 0,75 (AWG 19) | 9,2 | 71,1 | 137,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002215 | 7 G 0,75 (AWG 19) | 8,0 | 79,0 | 118,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002216 | 8 G 0,75 (AWG 19) | 10,8 | 94,8 | 189,8 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002217 | 9 G 0,75 (AWG 19) | 11,4 | 102,0 | 211,5 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002218 | 10 G 0,75 (AWG 19) | 11,6 | 109,2 | 220,6 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002219 | 12 G 0,75 (AWG 19) | 10,3 | 127,0 | 235,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002220 | 14 G 0,75 (AWG 19) | 12,9 | 142,6 | 262,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002221 | 15 G 0,75 (AWG 19) | 13,3 | 154,5 | 282,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002222 | 16 G 0,75 (AWG 19) | 13,5 | 161,7 | 296,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002223 | 18 G 0,75 (AWG 19) | 12,2 | 179,0 | 272,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002225 | 19 G 0,75 (AWG 19) | 14,5 | 187,9 | 342,8 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002226 | 21 G 0,75 (AWG 19) | 15,8 | 207,0 | 392,3 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002227 | 24 G 0,75 (AWG 19) | 16,7 | 228,6 | 424,1 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002228 | 25 G 0,75 (AWG 19) | 14,3 | 252,0 | 374,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002229 | 26 G 0,75 (AWG 19) | 17,2 | 247,6 | 454,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002230 | 27 G 0,75 (AWG 19) | 17,7 | 254,8 | 469,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002231 | 30 G 0,75 (AWG 19) | 15,3 | 289,0 | 429,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002232 | 32 G 0,75 (AWG 19) | 18,4 | 295,5 | 539,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002233 | 34 G 0,75 (AWG 19) | 16,7 | 325,0 | 493,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002234 | 36 G 0,75 (AWG 19) | 19,6 | 328,9 | 608,8 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002235 | 37 G 0,75 (AWG 19) | 16,7 | 345,0 | 517,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1004652 | 41 G 0,75 (AWG 19) | 17,8 | 384,0 | 734,3 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002236 | 42 G 0,75 (AWG 19) | 17,8 | 393,0 | 593,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002237 | 45 G 0,75 (AWG 19) | 22,8 | 403,0 | 764,2 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002238 | 50 G 0,75 (AWG 19) | 19,4 | 460,0 | 683,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002239 | 61 G 0,75 (AWG 19) | 21,0 | 547,0 | 831,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002241 | 2 X 1 (AWG 18) | 6,3 | 37,0 | 65,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002242 | 3 G 1 (AWG 18) | 6,7 | 49,0 | 77,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002243 | 4 G 1 (AWG 18) | 7,2 | 62,0 | 97,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002244 | 5 G 1 (AWG 18) | 7,8 | 73,0 | 113,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002245 | 6 G 1 (AWG 18) | 8,0 | 90,1 | 164,5 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002246 | 7 G 1 (AWG 18) | 8,4 | 97,0 | 141,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002247 | 8 G 1 (AWG 18) | 11,4 | 114,0 | 215,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002248 | 9 G 1 (AWG 18) | 12,1 | 128,2 | 250,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002249 | 10 G 1 (AWG 18) | 12,4 | 137,8 | 239,2 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002250 | 12 G 1 (AWG 18) | 10,9 | 155,0 | 224,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002251 | 14 G 1 (AWG 18) | 13,6 | 180,9 | 306,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002252 | 16 G 1 (AWG 18) | 14,4 | 200,1 | 347,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002253 | 18 G 1 (AWG 18) | 12,9 | 219,0 | 320,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002254 | 19 G 1 (AWG 18) | 15,3 | 233,5 | 395,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002255 | 20 G 1 (AWG 18) | 16,1 | 247,8 | 432,6 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002256 | 21 G 1 (AWG 18) | 16,9 | 262,0 | 465,1 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002257 | 24 G 1 (AWG 18) | 17,6 | 290,8 | 495,3 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002258 | 25 G 1 (AWG 18) | 17,6 | 308,0 | 440,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002259 | 26 G 1 (AWG 18) | 18,1 | 314,7 | 531,1 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002260 | 27 G 1 (AWG 18) | 18,8 | 324,3 | 548,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002261 | 30 G 1 (AWG 18) | 16,2 | 366,0 | 514,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002262 | 32 G 1 (AWG 18) | 19,6 | 376,9 | 641,1 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002263 | 34 G 1 (AWG 18) | 17,7 | 412,0 | 590,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002264 | 36 G 1 (AWG 18) | 21,3 | 420,0 | 742,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002265 | 37 G 1 (AWG 18) | 17,7 | 440,0 | 621,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002266 | 41 G 1 (AWG 18) | 19,2 | 486,0 | 709,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002267 | 42 G 1 (AWG 18) | 19,2 | 499,0 | 721,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002268 | 50 G 1 (AWG 18) | 21,3 | 582,0 | 850,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002269 | 56 G 1 (AWG 18) | 24,6 | 692,5 | 1.138,8 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002270 | 61 G 1 (AWG 18) | 22,3 | 699,0 | 997,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002271 | 2 X 1,5 (AWG 16) | 6,9 | 48,0 | 79,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002272 | 3 G 1,5 (AWG 16) | 7,3 | 68,0 | 100,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002273 | 4 G 1,5 (AWG 16) | 7,9 | 84,0 | 121,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002274 | 5 G 1,5 (AWG 16) | 8,6 | 102,0 | 147,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002275 | 6 G 1,5 (AWG 16) | 10,7 | 123,6 | 218,9 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002276 | 7 G 1,5 (AWG 16) | 9,3 | 135,0 | 185,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002277 | 8 G 1,5 (AWG 16) | 12,8 | 161,7 | 299,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002278 | 9 G 1,5 (AWG 16) | 13,5 | 176,1 | 342,6 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002279 | 10 G 1,5 (AWG 16) | 13,7 | 195,1 | 331,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002280 | 11 G 1,5 (AWG 16) | 13,8 | 209,5 | 363,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002281 | 12 G 1,5 (AWG 16) | 12,3 | 218,0 | 302,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002282 | 14 G 1,5 (AWG 16) | 15,0 | 257,4 | 427,5 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002283 | 16 G 1,5 (AWG 16) | 15,8 | 290,8 | 489,3 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002284 | 18 G 1,5 (AWG 16) | 14,8 | 325,0 | 454,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002285 | 19 G 1,5 (AWG 16) | 16,9 | 338,7 | 557,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002286 | 20 G 1,5 (AWG 16) | 17,9 | 353,1 | 612,5 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002287 | 21 G 1,5 (AWG 16) | 18,7 | 372,1 | 646,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002288 | 24 G 1,5 (AWG 16) | 19,5 | 420,0 | 724,2 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002289 | 25 G 1,5 (AWG 16) | 17,0 | 434,0 | 595,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002292 | 26 G 1,5 (AWG 16) | 20,1 | 448,8 | 770,4 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002305 | 27 G 1,5 (AWG 16) | 21,2 | 467,8 | 800,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002307 | 30 G 1,5 (AWG 16) | 18,3 | 515,0 | 697,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002309 | 32 G 1,5 (AWG 16) | 22,1 | 602,8 | 983,1 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002354 | 34 G 1,5 (AWG 16) | 20,0 | 584,0 | 798,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002355 | 37 G 1,5 (AWG 16) | 20,0 | 629,0 | 843,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002416 | 41 G 1,5 (AWG 16) | 22,0 | 699,0 | 979,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002418 | 42 G 1,5 (AWG 16) | 22,0 | 717,0 | 997,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002419 | 50 G 1,5 (AWG 16) | 23,8 | 847,0 | 1.146,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002422 | 56 G 1,5 (AWG 16) | 27,0 | 987,2 | 1.642,8 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002424 | 61 G 1,5 (AWG 16) | 24,9 | 1.012,0 | 1.343,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002425 | 2 X 2,5 (AWG 14) | 8,1 | 71,0 | 111,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002426 | 3 G 2,5 (AWG 14) | 8,6 | 100,0 | 142,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002427 | 4 G 2,5 (AWG 14) | 9,3 | 128,0 | 179,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002428 | 5 G 2,5 (AWG 14) | 10,4 | 153,0 | 219,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002432 | 7 G 2,5 (AWG 14) | 11,3 | 207,0 | 278,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002435 | 8 G 2,5 (AWG 14) | 14,8 | 243,1 | 394,6 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002438 | 9 G 2,5 (AWG 14) | 15,6 | 271,8 | 447,8 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002460 | 10 G 2,5 (AWG 14) | 15,9 | 295,8 | 473,2 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002463 | 12 G 2,5 (AWG 14) | 15,2 | 356,0 | 476,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002465 | 14 G 2,5 (AWG 14) | 17,4 | 396,4 | 574,6 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002466 | 16 G 2,5 (AWG 14) | 18,3 | 449,1 | 648,7 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002471 | 18 G 2,5 (AWG 14) | 17,9 | 514,0 | 693,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002477 | 24 G 2,5 (AWG 14) | 23,0 | 655,0 | 960,6 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002479 | 25 G 2,5 (AWG 14) | 23,0 | 700,0 | 949,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002482 | 34 G 2,5 (AWG 14) | 26,8 | 935,0 | 1.255,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002484 | 2 X 4 (AWG 12) | 9,4 | 109,0 | 158,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002490 | 3 G 4 (AWG 12) | 10,1 | 149,0 | 203,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002500 | 4 G 4 (AWG 12) | 11,1 | 193,0 | 262,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002501 | 5 G 4 (AWG 12) | 12,3 | 236,0 | 321,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002502 | 7 G 4 (AWG 12) | 13,6 | 326,0 | 422,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002503 | 11 G 4 (AWG 12) | 18,9 | 487,5 | 696,9 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002505 | 12 G 4 (AWG 12) | 19,4 | 530,5 | 732,1 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002506 | 2 X 6 (AWG 10) | 11,0 | 152,0 | 217,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002509 | 3 G 6 (AWG 10) | 11,7 | 214,0 | 282,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002512 | 4 G 6 (AWG 10) | 13,2 | 288,0 | 384,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002513 | 5 G 6 (AWG 10) | 14,7 | 355,0 | 471,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002514 | 7 G 6 (AWG 10) | 16,1 | 480,0 | 604,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002515 | 3 G 10 (AWG 8) | 15,3 | 355,0 | 467,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002516 | 4 G 10 (AWG 8) | 16,9 | 460,0 | 616,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002517 | 5 G 10 (AWG 8) | 18,9 | 570,0 | 764,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002519 | 7 G 10 (AWG 8) | 20,0 | 746,4 | 980,5 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002526 | 3 G 16 (AWG 6) | 17,6 | 543,0 | 674,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002530 | 4 G 16 (AWG 6) | 19,5 | 705,0 | 891,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002531 | 5 G 16 (AWG 6) | 22,2 | 880,0 | 1.121,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002532 | 7 G 16 (AWG 6) | 26,3 | 1.230,1 | 1.591,9 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002533 | 4 G 25 (AWG 4) | 24,6 | 1.081,0 | 1.380,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002536 | 5 G 25 (AWG 4) | 27,2 | 1.340,0 | 1.686,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002537 | 4 G 35 (AWG 2) | 27,7 | 1.487,0 | 1.823,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002547 | 5 G 35 (AWG 2) | 31,6 | 1.873,0 | 2.334,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
| 1002578 | 4 G 50 (AWG 1) | 33,6 | 2.136,0 | 2.645,0 | black | V2: 2-NORM-CY +UV 1.000V UL/CSA |
Naše iskustvo pomaže korisnicima pronaći idealno rješenje za odabir kabela, uzimajući u obzir tehničke zahtjeve, performanse, ekološke aspekte i, naravno, kvalitetu proizvoda po prihvatljivoj cijeni.
