Fleksibilni upravljački kabeli

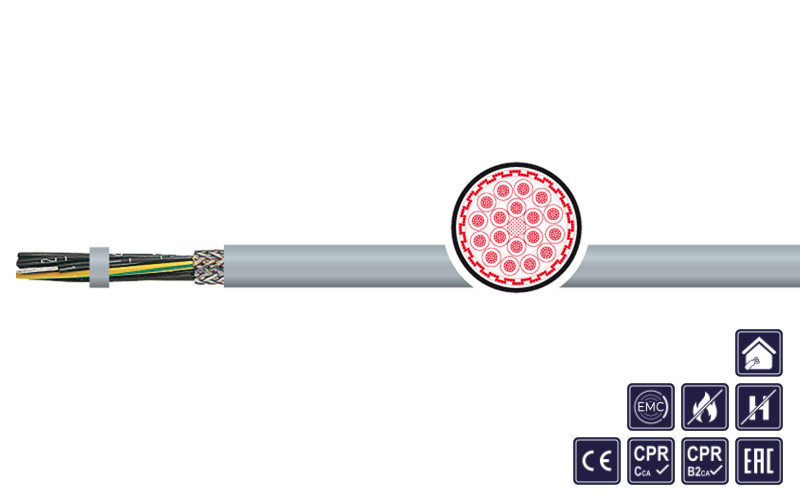

FLAME-JZ/OZ-CH FRNC - Cca or B2ca
ID: 01.03.02.02
300/500V, shielded, CPR Cca or B2ca
Use of cable
shielded halogen-free and environmentally power, control and connecting cable in electrical facilities, in fire vulnerable areas and facilities with high concentration of people and property values, for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.
Special features
- FRNC (Flame Retardant, Non Corrosive)
- LSF 0H ( Low smoke in fume, zero halogen)
- improved behaviour in case of fire (acc. to IEC 60332-3-25 Cat. A)
- recommended for EMC-applications
Remarks
- conform to RoHS
- conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
- LABS-/silicone-free (during production)
| Conductor material: | Bare copper strand |
|---|---|
| Conductor class: | Acc. to IEC 60228 cl. 5 |
| Core insulation: | Special halogen-free compound |
| Core identification: | Acc. to DIN VDE 0293 black cores with white numerals; G = GNYE |
| Stranding: | Stranded in layers |
| Shield3: | Copper braid tinned; coverage approx. 85 % |
| Outer sheath: | Special halogen-free compound |
| Sheath colour: | Grey, RAL 7001 |
| Rated voltage: | Uo/U: 300/500 V |
| Testing voltage: | 3 kV |
| Conductor resistance: | Acc. to IEC 60228 cl. 5 |
| Insulation resistance: | Min. 20 MΩ x km |
| Current-carrying-capacity: | Acc. to DIN VDE, see technical Guidelines |
| Min. bending radius fixed: | 6 x d |
| Min. bending radius moved: | 15 x d |
| Operat. temp. fixed min/max: | -40 °C / +70 °C |
| Operat. temp. moved min/max: | -15 °C / +70 °C |
| Halogen free: | Acc. to IEC 60754-1 |
| Smoke density: | Acc. to IEC 61034-2 |
| Corrodibility: | Acc. to IEC 60754-2 |
| Burning behavior: | Halogen-free and flame-retardant acc. to IEC 60332-1-2 and IEC 60332-3-24 Cat. C resp. IEC 60332-3-25 Cat. A |
| Standard: | Similar to EN 50525-2-51 |
Table of items
|
Product No.
|
Dimension
[n x mm²] |
Outer-Ø
[mm] |
Cu-Index
[kg/km] |
Weight
[kg/1.000] |
Sheath colour
|
Variant
|
|---|---|---|---|---|---|---|
| 1005769 | 2 X 0,5 | 5,4 | 36,0 | 44,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005770 | 3 G 0,5 | 5,7 | 43,0 | 52,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005771 | 3 X 0,5 | 5,7 | 43,0 | 52,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005772 | 4 G 0,5 | 6,3 | 49,0 | 67,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005773 | 4 X 0,5 | 6,3 | 49,0 | 67,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005774 | 5 G 0,5 | 6,9 | 57,0 | 79,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005775 | 5 X 0,5 | 6,9 | 57,0 | 79,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005776 | 7 G 0,5 | 7,6 | 69,0 | 100,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005777 | 7 X 0,5 | 7,6 | 69,0 | 100,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005778 | 12 G 0,5 | 9,7 | 104,0 | 159,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005779 | 12 X 0,5 | 9,7 | 104,0 | 159,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005780 | 18 G 0,5 | 11,4 | 141,0 | 223,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005781 | 18 X 0,5 | 11,4 | 141,0 | 223,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005782 | 25 G 0,5 | 13,3 | 211,0 | 291,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005783 | 25 X 0,5 | 13,3 | 211,0 | 291,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005784 | 2 X 0,75 | 6,0 | 43,0 | 51,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005785 | 3 G 0,75 | 6,3 | 52,0 | 68,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005786 | 3 X 0,75 | 6,3 | 52,0 | 68,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005787 | 4 G 0,75 | 6,8 | 61,0 | 81,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005788 | 4 X 0,75 | 6,8 | 61,0 | 81,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005789 | 5 G 0,75 | 7,6 | 72,0 | 101,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005790 | 5 X 0,75 | 7,6 | 72,0 | 101,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005791 | 7 G 0,75 | 8,2 | 89,0 | 122,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005792 | 7 X 0,75 | 8,2 | 89,0 | 122,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005793 | 12 G 0,75 | 10,7 | 138,0 | 197,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005794 | 12 X 0,75 | 10,7 | 138,0 | 197,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005795 | 18 G 0,75 | 12,6 | 211,0 | 284,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005796 | 18 X 0,75 | 12,6 | 211,0 | 284,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005797 | 25 G 0,75 | 14,9 | 280,0 | 392,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005798 | 2 X 1 | 6,3 | 51,0 | 63,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005799 | 3 G 1 | 6,7 | 62,0 | 77,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005800 | 3 X 1 | 6,7 | 62,0 | 77,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005801 | 4 G 1 | 7,2 | 74,0 | 98,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005802 | 4 X 1 | 7,2 | 74,0 | 98,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005803 | 5 G 1 | 8,0 | 88,0 | 117,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005804 | 5 X 1 | 8,0 | 88,0 | 117,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005805 | 7 G 1 | 8,6 | 112,0 | 147,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005806 | 7 X 1 | 8,6 | 112,0 | 147,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005807 | 12 G 1 | 11,3 | 185,0 | 155,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005808 | 18 G 1 | 13,5 | 268,0 | 340,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005809 | 25 G 1 | 15,7 | 354,0 | 464,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005810 | 2 X 1,5 | 6,9 | 65,0 | 76,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005811 | 3 G 1,5 | 7,5 | 82,0 | 101,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005812 | 3 X 1,5 | 7,5 | 82,0 | 101,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005813 | 4 G 1,5 | 8,1 | 100,0 | 123,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005814 | 4 X 1,5 | 8,1 | 100,0 | 123,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005815 | 5 G 1,5 | 9,0 | 119,0 | 153,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005816 | 5 X 1,5 | 9,0 | 119,0 | 153,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005817 | 7 G 1,5 | 9,7 | 154,0 | 194,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005818 | 7 X 1,5 | 9,7 | 154,0 | 194,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005819 | 12 G 1,5 | 12,7 | 268,0 | 313,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005820 | 18 G 1,5 | 15,4 | 373,0 | 472,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005821 | 25 G 1,5 | 17,8 | 530,0 | 620,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005822 | 2 X 2,5 | 8,3 | 96,0 | 111,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005823 | 3 G 2,5 | 9,0 | 118,0 | 147,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005824 | 3 X 2,5 | 9,0 | 118,0 | 147,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005825 | 4 G 2,5 | 9,7 | 147,0 | 187,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005826 | 5 G 2,5 | 10,8 | 176,0 | 227,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005827 | 7 G 2,5 | 11,9 | 253,0 | 290,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005828 | 4 G 4 | 11,5 | 248,0 | 268,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005829 | 5 G 4 | 12,7 | 269,0 | 332,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005830 | 4 G 6 | 13,8 | 343,0 | 394,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005831 | 5 G 6 | 15,3 | 441,0 | 489,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005832 | 4 G 10 | 17,1 | 535,0 | 614,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005833 | 5 G 10 | 19,2 | 592,0 | 763,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005834 | 4 G 16 | 19,8 | 800,0 | 972,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005836 | 4 G 25 | 24,5 | 1.075,0 | 1.355,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
| 1005837 | 5 G 25 | 27,9 | 1.446,0 | 1.799,0 | grey | V0: FLAME-JZ/OZ-CH FRNC Cca |
