Fleksibilni upravljački kabeli

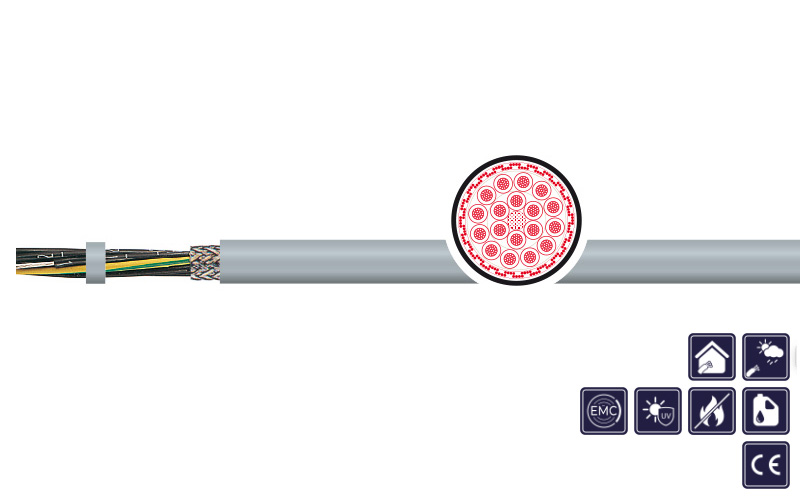

KAWEFLEX® CONTROL C-PUR GREY - (N)YMHC11YÖ
ID: 01.04.11
300/500V, shielded
Use of cable
shielded power, control and connecting cable in electrical facilities and hand-held electric tools, for fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use within temperature range, no laying underground.
Special features
- increased oil resistant special-PUR-outer sheath resistance to acids, bases, dissolver, hydrolysis, lubricants etc. (see table of chemical resistance)
- free from lacquer damaging substances and silicone (during production)
- increased abrasion and notch-resistant, resistant to microbes
- cutproof, tearproof
- UV- and ozone resistant PUR outer sheath
- recommended for EMC-applications
Remarks
- conform to RoHS
- conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
- We are pleased to produce special versions, other dimensions, core and jacket colours on request.
| Conductor material: | Bare copper strand |
|---|---|
| Conductor class: | Acc. to IEC 60228 cl. 5 |
| Core insulation: | PVC |
| Core identification: | Acc. to DIN VDE 0293 black cores with white numerals with GNYE from 3 cores |
| Stranding: | Stranded in layers |
| Shield3: | Copper braid tinned, coverage approx. 85% |
| Outer sheath: | PUR |
| Sheath colour: | Grey RAL 7001 |
| Rated voltage: | Uo/U: 300/500 V |
| Testing voltage: | 3 kV |
| Conductor resistance: | Acc. to IEC 60228 cl. 5 |
| Insulation resistance: | Min. 20 MΩ x km |
| Current-carrying-capacity: | Acc. to. DIN VDE, see Technical Guidelines |
| Min. bending radius fixed: | 6 x d |
| Min. bending radius moved: | 20 x d |
| Operat. temp. fixed min/max: | -40 °C / +80 °C |
| Operat. temp. moved min/max: | -5 °C / +70 °C |
| Standard: | Similar to EN 50525-2-51 |
Table of items
|
Product No.
|
Dimension
[n x mm²] |
Outer-Ø
[mm] |
Cu-Index
[kg/km] |
Weight
[kg/1.000] |
Sheath colour
|
Variant
|
|---|---|---|---|---|---|---|
| 1005268 | 2 X 0,5 | 5,4 | 24,0 | 40,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005269 | 3 G 0,5 | 5,7 | 29,0 | 46,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005270 | 3 X 0,5 | 5,7 | 29,0 | 46,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005271 | 4 G 0,5 | 6,3 | 39,0 | 61,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005272 | 4 X 0,5 | 6,3 | 39,0 | 61,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005273 | 5 G 0,5 | 6,9 | 44,0 | 71,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005274 | 5 X 0,5 | 6,9 | 44,0 | 71,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005275 | 7 G 0,5 | 7,6 | 59,0 | 91,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005276 | 7 X 0,5 | 7,6 | 59,0 | 91,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005277 | 12 G 0,5 | 9,7 | 94,0 | 146,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005278 | 12 X 0,5 | 9,7 | 94,0 | 146,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005279 | 18 G 0,5 | 11,4 | 128,0 | 206,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005280 | 18 X 0,5 | 11,4 | 128,0 | 206,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005332 | 25 G 0,5 | 13,3 | 184,0 | 284,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005333 | 25 X 0,5 | 13,3 | 184,0 | 284,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005334 | 2 X 0,75 | 6,0 | 34,0 | 51,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005335 | 3 G 0,75 | 6,3 | 41,0 | 61,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005336 | 3 X 0,75 | 6,3 | 41,0 | 61,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005337 | 4 G 0,75 | 6,8 | 49,0 | 73,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005338 | 4 X 0,75 | 6,8 | 49,0 | 73,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005339 | 5 G 0,75 | 7,6 | 61,0 | 92,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005340 | 5 X 0,75 | 7,6 | 61,0 | 92,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005341 | 7 G 0,75 | 8,2 | 76,0 | 112,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005342 | 7 X 0,75 | 8,2 | 76,0 | 112,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005343 | 12 G 0,75 | 10,7 | 123,0 | 182,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005344 | 12 X 0,75 | 10,7 | 123,0 | 182,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005345 | 18 G 0,75 | 12,6 | 176,0 | 264,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005346 | 18 X 0,75 | 12,6 | 176,0 | 264,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005347 | 25 G 0,75 | 14,9 | 253,0 | 366,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005348 | 2 X 1 | 6,3 | 39,0 | 58,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005349 | 3 G 1 | 6,7 | 49,0 | 69,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005350 | 3 X 1 | 6,7 | 49,0 | 69,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005351 | 4 G 1 | 7,2 | 63,0 | 90,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005352 | 4 X 1 | 7,2 | 63,0 | 90,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005353 | 5 G 1 | 8,0 | 74,0 | 107,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005354 | 5 X 1 | 8,0 | 74,0 | 107,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005355 | 7 G 1 | 8,6 | 98,0 | 137,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005356 | 7 X 1 | 8,6 | 98,0 | 137,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005357 | 12 G 1 | 11,3 | 157,0 | 220,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005358 | 18 G 1 | 13,5 | 237,0 | 332,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005359 | 25 G 1 | 15,7 | 313,0 | 434,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005360 | 2 X 1,5 | 6,9 | 49,0 | 71,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005361 | 3 G 1,5 | 7,5 | 68,0 | 92,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005362 | 3 X 1,5 | 7,5 | 68,0 | 92,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005363 | 4 G 1,5 | 8,1 | 83,0 | 114,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005364 | 4 X 1,5 | 8,1 | 83,0 | 114,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005365 | 5 G 1,5 | 9,0 | 103,0 | 142,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005366 | 5 X 1,5 | 8,9 | 103,0 | 142,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005367 | 7 G 1,5 | 9,7 | 137,0 | 181,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005368 | 7 X 1,5 | 9,7 | 137,0 | 181,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005369 | 12 G 1,5 | 12,7 | 219,0 | 293,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005370 | 18 G 1,5 | 15,4 | 332,0 | 444,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005371 | 25 G 1,5 | 17,8 | 451,0 | 591,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005372 | 2 X 2,5 | 8,3 | 74,0 | 105,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005373 | 3 G 2,5 | 9,0 | 103,0 | 136,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005374 | 3 X 2,5 | 9,0 | 103,0 | 136,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005375 | 4 G 2,5 | 9,7 | 132,0 | 175,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005376 | 5 G 2,5 | 10,8 | 156,0 | 211,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005377 | 7 G 2,5 | 11,9 | 209,0 | 272,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005378 | 4G4 | 11,5 | 195,0 | 256,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005379 | 5G4 | 12,7 | 238,0 | 312,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005380 | 4G6 | 13,6 | 294,0 | 377,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005381 | 5G6 | 15,3 | 361,0 | 460,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005382 | 4G10 | 17,1 | 466,0 | 590,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005383 | 5G10 | 19,2 | 571,0 | 721,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005384 | 4G16 | 19,8 | 715,0 | 858,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005385 | 5G16 | 22,2 | 878,0 | 1.051,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005386 | 4G25 | 24,5 | 1.088,0 | 1.319,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005387 | 4G35 | 27,9 | 1.481,0 | 1.762,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005388 | 4G50 | 33,3 | 2.133,0 | 2.528,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005389 | 4G70 | 39,7 | 2.944,0 | 3.528,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
| 1005390 | 4G95 | 44,8 | 3.933,0 | 4.625,0 | grey | V0: KAWEFLEX CONTROL (N)YMHC11YÖ |
