Fleksibilni upravljački kabeli

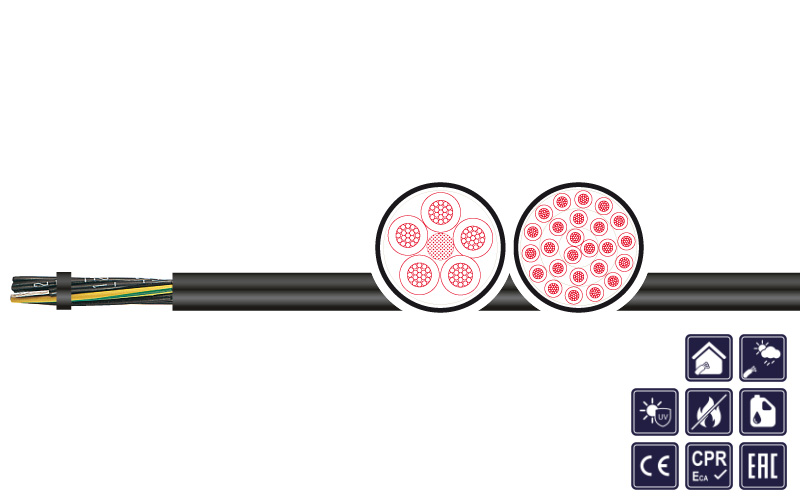

ÖPVC-JZ/OZ 0,6/1kV BLACK
ID: 01.01.08
0,6/1kV, unshielded, UV resistant, CPR Eca
Use of cable
power, control and connecting cable in electrical facilities, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use but no laying underground.
Special features
- operation voltage 0.6/1 kV
- 4kV testing voltage
- largely resistant to acids, bases and specified types of oil
- UV-proofed PVC outer sheath
Remarks
- conform to RoHS
- conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
- LABS-/silicone-free (during production)
- special versions, other dimensions, core and jacket colours according to your specifications on request
| Conductor material: | Bare copper strand |
|---|---|
| Conductor class: | Acc. to IEC 60228 cl. 5 |
| Core insulation: | PVC |
| Core identification: | Acc. to DIN VDE 0293 black cores with white numerals; G: with GNYE |
| Stranding: | Stranded in layers |
| Outer sheath: | PVC |
| Sheath colour: | Black, RAL 9005 |
| Rated voltage: | Uo/U: 0,6/1 kV |
| Testing voltage: | 4 kV |
| Conductor resistance: | Acc. to IEC 60228 cl. 5 |
| Insulation resistance: | Min. 20 MΩ x km |
| Current-carrying-capacity: | Acc. to DIN VDE, see technical Guidelines |
| Min. bending radius fixed: | 4 x d |
| Min. bending radius moved: | 15 x d |
| Operat. temp. fixed min/max: | -40 °C / +80 °C |
| Operat. temp. moved min/max: | -15 °C / +70 °C |
| Temp. at conductor: | +70 °C in operation; +160 °C in case of short-circuit |
| Burning behavior: | Self-extinguishing & flame-retardant acc.to IEC 60332-1 |
| Standard: | Similar to EN 50525-2-51 with insulationthickness for 1 kV |
Table of items
|
Product No.
|
Dimension
[n x mm²] |
Outer-Ø
[mm] |
Cu-Index
[kg/km] |
Weight
[kg/1.000] |
Sheath colour
|
Variant
|
|---|---|---|---|---|---|---|
| 1003183 | 2 X 0,5 | 6,3 | 9,6 | 55,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003428 | 3 G 0,5 | 6,7 | 14,4 | 65,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003184 | 3 X 0,5 | 6,7 | 14,4 | 65,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003429 | 4 G 0,5 | 7,2 | 19,2 | 76,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1005329 | 4 X 0,5 | 7,2 | 19,2 | 76,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003430 | 5 G 0,5 | 8,0 | 24,0 | 94,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003187 | 7 G 0,5 | 8,9 | 33,6 | 136,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003432 | 12 G 0,5 | 11,4 | 57,6 | 197,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1004121 | 14 G 0,5 | 12,0 | 67,2 | 655,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003433 | 18 G 0,5 | 13,8 | 86,4 | 280,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003434 | 25 G 0,5 | 16,4 | 120,0 | 387,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1004237 | 52 G 0,5 | 21,7 | 249,6 | 732,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003435 | 2 X 0,75 | 6,6 | 14,4 | 62,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003000 | 3 G 0,75 | 7,0 | 21,6 | 73,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003055 | 4 G 0,75 | 7,6 | 28,8 | 89,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003083 | 5 G 0,75 | 8,4 | 36,0 | 111,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003056 | 7 G 0,75 | 9,3 | 50,4 | 140,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003057 | 12 G 0,75 | 12,3 | 86,4 | 240,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003058 | 18 G 0,75 | 14,5 | 130,0 | 340,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003062 | 25 G 0,75 | 17,4 | 180,0 | 475,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003763 | 41 G 0,75 | 21,6 | 296,0 | 713,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001046 | 2 X 1 | 7,0 | 19,2 | 73,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003002 | 3 G 1 | 7,3 | 28,8 | 83,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003842 | 3 X 1 | 7,3 | 28,8 | 83,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1002408 | 4 G 1 | 8,2 | 38,4 | 108,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1004265 | 4 X 1 | 8,2 | 38,4 | 108,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001972 | 5 G 1 | 9,2 | 48,0 | 136,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1002993 | 7 G 1 | 9,9 | 67,2 | 166,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1004120 | 9 G 1 | 12,3 | 86,4 | 236,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001974 | 12 G 1 | 13,0 | 115,0 | 281,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001975 | 18 G 1 | 15,7 | 173,0 | 405,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001976 | 25 G 1 | 18,8 | 240,0 | 554,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003867 | 34 G 1 | 21,3 | 327,0 | 764,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003750 | 41 G 1 | 23,2 | 394,0 | 891,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003446 | 2 X 1,5 | 8,2 | 28,8 | 99,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000537 | 3 G 1,5 | 8,6 | 43,2 | 110,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000843 | 3 X 1,5 | 8,6 | 43,2 | 110,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000560 | 4 G 1,5 | 9,6 | 57,6 | 140,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000846 | 4 X 1,5 | 9,6 | 57,6 | 140,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000588 | 5 G 1,5 | 10,7 | 72,0 | 170,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000620 | 7 G 1,5 | 11,6 | 101,0 | 220,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000854 | 7 X 1,5 | 11,6 | 101,0 | 220,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1002797 | 10 G 1,5 | 15,3 | 144,0 | 270,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000462 | 12 G 1,5 | 15,5 | 173,0 | 412,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000860 | 12 X 1,5 | 15,5 | 173,0 | 412,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1005195 | 14 G 1,5 | 16,7 | 202,0 | 400,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001856 | 16 G 1,5 | 17,3 | 230,0 | 389,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1002799 | 18 G 1,5 | 18,6 | 259,0 | 546,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1002592 | 19 G 1,5 | 18,6 | 273,6 | 563,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001977 | 25 G 1,5 | 22,1 | 360,0 | 771,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003897 | 32 G 1,5 | 25,0 | 461,0 | 880,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1004974 | 34 G 1,5 | 25,3 | 490,0 | 950,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003197 | 42 G 1,5 | 27,6 | 605,0 | 1.235,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003447 | 2 X 2,5 | 9,4 | 48,0 | 141,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000543 | 3 G 2,5 | 10,0 | 72,0 | 175,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000870 | 3 X 2,5 | 10,0 | 72,0 | 175,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000565 | 4 G 2,5 | 11,0 | 96,0 | 220,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000890 | 4 X 2,5 | 11,0 | 96,0 | 220,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000594 | 5 G 2,5 | 12,5 | 120,0 | 251,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000627 | 7 G 2,5 | 13,7 | 168,0 | 331,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001857 | 12 G 2,5 | 18,3 | 288,0 | 553,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003073 | 18 G 2,5 | 22,0 | 432,0 | 788,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003448 | 25 G 2,5 | 25,8 | 600,0 | 1.100,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003449 | 2 X 4 | 11,4 | 76,8 | 199,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003450 | 3 G 4 | 12,3 | 115,2 | 230,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000897 | 4 X 4 | 13,7 | 154,0 | 310,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003063 | 4 G 4 | 13,7 | 154,0 | 310,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003452 | 5 G 4 | 15,2 | 192,0 | 400,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003453 | 7 G 4 | 16,7 | 269,0 | 501,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003454 | 12 G 4 | 22,0 | 461,0 | 840,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000924 | 2 X 6 | 13,0 | 115,2 | 283,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003455 | 3 G 6 | 14,0 | 173,0 | 347,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1002798 | 4 G 6 | 15,5 | 230,0 | 428,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003456 | 5 G 6 | 17,3 | 288,0 | 583,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003141 | 7 G 6 | 19,1 | 403,0 | 663,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000929 | 3 X 10 | 16,5 | 288,0 | 537,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1002796 | 4 G 10 | 18,2 | 384,0 | 668,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003124 | 5 G 10 | 20,4 | 480,0 | 820,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003459 | 7 G 10 | 22,4 | 672,0 | 1.050,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000969 | 4 X 16 | 21,6 | 614,0 | 1.109,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003088 | 4 G 16 | 21,6 | 614,0 | 1.109,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003143 | 5 G 16 | 24,7 | 768,0 | 1.616,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003465 | 7 G 16 | 26,2 | 1.075,0 | 1.798,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003139 | 4 G 25 | 26,4 | 960,0 | 1.623,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1001589 | 5 G 25 | 29,2 | 1.200,0 | 2.075,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003469 | 7 G 25 | 32,2 | 1.680,0 | 2.950,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003470 | 4 G 35 | 29,1 | 1.344,0 | 2.415,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003471 | 5 G 35 | 32,5 | 1.680,0 | 2.890,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003125 | 4 G 50 | 35,6 | 1.920,0 | 3.390,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000976 | 5 G 50 | 37,9 | 2.400,0 | 4.633,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003126 | 4 G 70 | 40,7 | 2.688,0 | 4.320,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000963 | 5 G 70 | 45,7 | 3.360,0 | 5.807,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003140 | 4 G 95 | 46,2 | 3.648,0 | 6.000,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1000977 | 5 G 95 | 52,8 | 4.560,0 | 7.500,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003127 | 4 G 120 | 52,0 | 4.608,0 | 7.500,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
| 1003737 | 7 X 1,5 | 11,6 | 101,0 | 222,0 | black | V0: ÖPVC-JZ/OZ 0,6/1 kV - schwarz / black |
