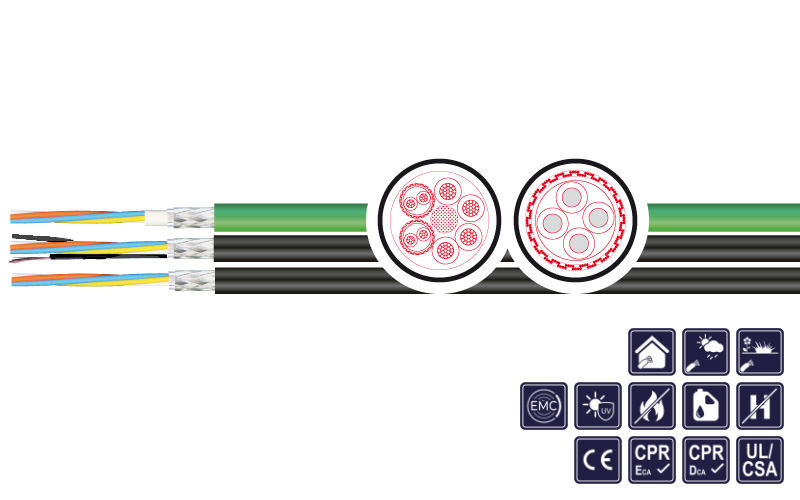

Use of cable

as a data cable for the transmission of digital and analog signals for PROFINET systems, Industrial Ethernet & ICT network applications. For fixed applications & limited flexible applications in harsh industrial environments for industrial machinery, decices and cabinet wiring.

Standard acc. Profinet Spec. & according the requirements for industrial secondary & and tertiary cabling: EN 50173, ISO / IEC 11801, TIA / EIA 568, TSB36, EN 50288, IEC 61156-5/-6

Special features

  • largely resistant to grease, coolant fluids and lubricants
  • oil-resistant: PUR & PVC acc.to DIN EN 60811-2-1 (PVC only mineral oil)
                        Marine MUD acc.to NEK 606 (drilling mud)
  • UV-resistant: PUR; FEP; PVC & PE black; CMG & CMX types
  • optimized EMC compliant shielding
  • 2 pairs: 10/100 Mbit / s for Industrial Ethernet
  • HF-characteristics Cat.5e acc. to IEC 61156-5 (AWG22), IEC 61156-6 (AWG24)
  • max. cable lengths at stated transmission rate:
       Typ A: 100Mbit/s - max.100m | Typ B: 100Mbit/s - max.85m

Remarks

  • conform to RoHS // LABS-/silicone-free (during production)
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • FRNC: Flame Retardant, Non Corrosive
  • FC-Type = 'fast-connect' construction
  • Typ A: for fixed laying  |  Typ B: for flexible applications
Conductor material: Typ A: bare copper conductor | Typ B: copper strand tinned, supply cores: copper strand tinned
Conductor class: Typ A: solid | Typ B: 7-wired; supply cores acc. to IEC 60228 cl. 5
Core insulation: Data cores: polyolefin resp. foamed polyolefin or FEP, supply cores: polyolefin or PVC
Core identification: Data cores: wh,ye-bu,og; supply cores: 0,34 mm² acc. to DIN 47100 - 1,5 mm² bk with white numerals
Stranding: 4 cores twisted to quad, HYBRID-version: data cores twisted to pairs
Shield: SF/UTP: copper braid tinned over alu-lamin. polyester foil, metal side outs., cover. 100% | HYBRID: U/SFTP
Overall stranding: HYBRID: screened datapairs a. supply cores stranded
Outer sheath: PVC, PE, FEP, PUR, XP, HP, halogen-free compound
Sheath colour: Green RAL 6018 (GN) or black RAL 9005 (BK)
Rated voltage: 125 V (not for high voltage purposes)
Loop resistance: Max.115,0 Ω/km - AWG22; max.115,0 Ω/km - 0,34 mm²; max.26,6 Ω/km - 1,5 mm²
Capacity: Nom. 48 nF/km
Characteristic impedance: 100 ± 15 Ω
Transfer rate: Up to 100 Mbit/s
Min. bending radius fixed: 10 x d
Min. bending radius moved: 15 x d
Operat. temp. fixed min/max: -40 °C / +80 °C | FRNC: -25 °C / +80 °C | FEP: -50 °C / +180 °C (short time +205 °C)
Operat. temp. moved min/max: -10 °C / +70 °C; PUR,FEP: -30 °C / +70 °C
Halogen free: Acc. to IEC 60754-1 (FRNC types)
Burning behavior: PE: not flame retardant | PVC+Marine C-XP: acc. to IEC 60332-1-2 | AWM: acc. to IEC 60332-1-2, cable flame test (UL 2556) | CMX: acc. to IEC 60332-1-2, FT1, VW-1 | CMG: acc. to IEC 60332-3-24, FT4 | CM: acc. to IEC 60332-3-24, UL FlameExposure (UL 1685/CSA) | Marine C-HP: acc. to IEC 60332-3-22 (Cat. A/F)
Approvals: See table right side

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
2003719 2 X 2 X AWG 22/1 6,5 33,0 68,0 green V1: PROFINET - Standard Cat. 5e - 200 MHz UL/CSA
2003720 2 X 2 X AWG 22/7 6,5 33,0 69,0 green V2: PROFINET - Flexible Cat. 5e - 200 MHz UL/CSA
2003721 2 X 2 X AWG 22/1 6,5 33,0 71,0 green V3: PROFINET - FRNC Cat. 5e - 200 MHz UL/CSA
2003722 2 X 2 X AWG 22/7 6,5 33,0 72,0 green V3: PROFINET - FRNC Cat. 5e - 200 MHz UL/CSA
2003723 2 X 2 X AWG 22/7 6,5 33,0 69,0 black V4: PROFINET - Outdoor Cat. 5e - 200 MHz UL/CSA
2003724 2 X 2 X AWG 22/1 9,0 33,0 101,0 black V5: PROFINET - Burial Cat. 5e - 200 MHz
2003725 2 X 2 X AWG 22/1 6,5 33,0 73,0 green V6: PROFINET - Robust Cat. 5e - 200 MHz UL/CSA
2003726 2 X 2 X AWG 22/7 6,5 33,0 73,0 green V6: PROFINET - Robust Cat. 5e - 200 MHz UL/CSA
2003801 2 X 2 X AWG 22/1 6,5 33,0 73,0 green V6: PROFINET - Robust Cat. 5e - 200 MHz UL/CSA
2003802 2 X 2 X AWG 22/7 6,5 33,0 73,0 green V6: PROFINET - Robust Cat. 5e - 200 MHz UL/CSA
2003727 2 X 2 X AWG 22/7 6,5 33,0 72,0 black V7: PROFINET - Food Cat. 5e - 200 MHz
2003728 2 X 2 X AWG 22/1 6,5 33,0 68,0 green V8: PROFINET - Extemp 105°C & 180°C Cat. 5e - 200 MHz
2003729 2 X 2 X AWG 22/1 5,4 33,0 62,0 green V8: PROFINET - Extemp 105°C & 180°C Cat. 5e - 200 MHz
