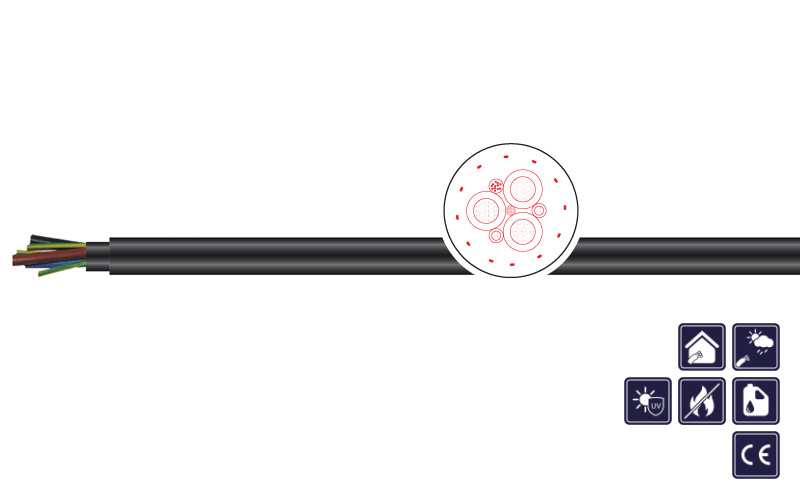

Use of cable

reeling cable for winding operation, especially with simultaneously tensile stress and/or torsional stress and/or forced cable guidance. Suitable for dry, humid and wet rooms, for outdoor use and also on construction sites, in commercial and agricultural plants.

Special features

  • free from lacquer damaging substances and silicone (during production)
  • for travelling speed up to 180 m / min
  • where excessive stress, particularly high dynamic tensile force may be expected, e. g. as a result of high acceleration figures, the permissible stress limits have to be determinated individually.
  • failure-free data transmission via FO

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Also available assembled with fitting terminations and ST connectors (FO)
Conductor material: Bare copper strand; FO: Graded index-fibre 62,5/125 µ
Conductor class: Acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5
Core insulation: Rubber compound; FO: with jelly filled PETP tubes in an envelope of a special rubber compound
Core identification: Acc. to VDE 0293-308 coloured and GNYE
Overall stranding: Cores stranded in layer, splitted earth conductors and FO element in the interstices
Inner sheath material: Special rubber-compound
Outer sheath: Special rubber-compound
Sheath colour: Black
Rated voltage: Uo/U: 0,6/1 kV
Testing voltage: 2,5 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: Acc. to DIN VDE 0298 part 3
Min. bending radius moved: Acc. to DIN VDE 0298 part 3
Operat. temp. fixed min/max: -40 °C / +80 °C
Operat. temp. moved min/max: -40 °C / +80 °C
Temp. at conductor: +90 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-1
Resistant to oil: Acc. to EN 60811-404
Tensile strength: Tensile strength max. 20 N / mm²
Standard: Similar to DIN VDE 0250

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3004401 3 X 35 + 3 G 16/3 29,0 - 32,0 1.181,0 1.794,0 black V1: REELTEC KSM-S (N)SHTÖU-J
3004402 3 X 50 + 3 G 25/3 33,0 - 37,0 1.680,0 2.920,0 black V1: REELTEC KSM-S (N)SHTÖU-J
3004403 3 X 70 + 3 G 35/3 40,0 - 43,0 2.352,0 3.440,0 black V1: REELTEC KSM-S (N)SHTÖU-J
3004404 3 X 95 + 3 G 50/3 43,0 - 46,0 3.216,0 4.320,0 black V1: REELTEC KSM-S (N)SHTÖU-J
3004405 3 X 120 + 3 G 70/3 48,0 - 52,5 4.128,0 5.400,0 black V1: REELTEC KSM-S (N)SHTÖU-J
3004406 3 X 150 + 3 G 70/3 52,0 - 56,1 4.992,0 6.550,0 black V1: REELTEC KSM-S (N)SHTÖU-J
3004407 3 X 185 + 3 G 95/3 56,0 - 61,0 6.240,0 7.980,0 black V1: REELTEC KSM-S (N)SHTÖU-J
3004408 3 X 240 + 3 G 120/3 64,0 - 70,0 8.064,0 10.180,0 black V1: REELTEC KSM-S (N)SHTÖU-J
3004428 3 X 240 + 3 G 120/3 64,0 - 70,0 8.064,0 10.180,0 yellow V1: REELTEC KSM-S (N)SHTÖU-J
3004409 3 X 25 + 2 G 16/2 + 12 G 62,5/125 31,0 - 34,0 894,0 1.770,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004410 3 X 35 + 2 G 16/2 + 12 G 62,5/125 33,0 - 36,5 1.181,0 2.220,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004422 3 X 35 + 2 G 16/2 + 12 E 9/125 33,0 - 36,5 1.181,0 2.120,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004423 3 X 35 + 2 G 16/2 + 12 G 50/125 33,0 - 36,5 1.181,0 2.120,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004411 3 X 50 + 2 G 25/2 + 12 G 62,5/125 33,0 - 42,5 1.680,0 2.920,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004412 3 X 70 + 2 G 35/2 + 12 G 62,5/125 39,0 - 43,0 2.352,0 3.440,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004413 3 X 95 + 2 G 50/2 + 12 G 62,5/125 43,0 - 46,0 3.216,0 4.420,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004414 3 X 120 + 2 G 70/2 + 12 G 62,5/125 48,0 - 52,5 4.128,0 5.430,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004415 3 X 120 + 2 G 70/2 + 12 G 50/125 48,0 - 52,5 4.128,0 5.430,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004416 3 X 120 + 2 G 70/2 + 20 G 62,5/125 48,0 - 52,0 4.128,0 5.430,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004751 3 X 120 + 1 G 70 + (4 X 1,5)C + 12 G 62,5/125 55,5 - 58,7 4.214,4 6.460,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004426 3 X 120 + 1 G 70 + (5 X 2,5)C + 12G62,5/125 58,2 (max. 61,5) 4.286,4 6.870,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004427 3 X 120 + 1 G 70 + 2 X (5 X 2,5)C + 12 G 62,5/125 60,2 (max. 61,0) 4.444,8 6.990,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004417 3 X 150 + 2 G 70/2 + 12 G 62,5/125 52,0 - 58,0 4.992,0 6.580,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004418 3 X 185 + 2 G 95/2 + 12 G 62,5/125 56,0 - 61,0 6.240,0 8.350,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004419 3 X 185 + 2 G 95/2 + 12 G 50/125 56,0 - 61,0 6.240,0 8.350,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004425 3 X 185 + 2 G 95/2 + 12 E9/125 59,9 - 63,2 6.240,0 8.290,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004420 3 X 240 + 2 G 120/2 + 12 G 62,5/125 64,0 - 70,0 8.064,0 10.840,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
3004421 3 X 240 + 2 G 120/2 + 12 G 50/125 64,0 - 70,0 8.064,0 9.980,0 black V2: REELTEC KSM-S (N)SHTÖU-J+FO
