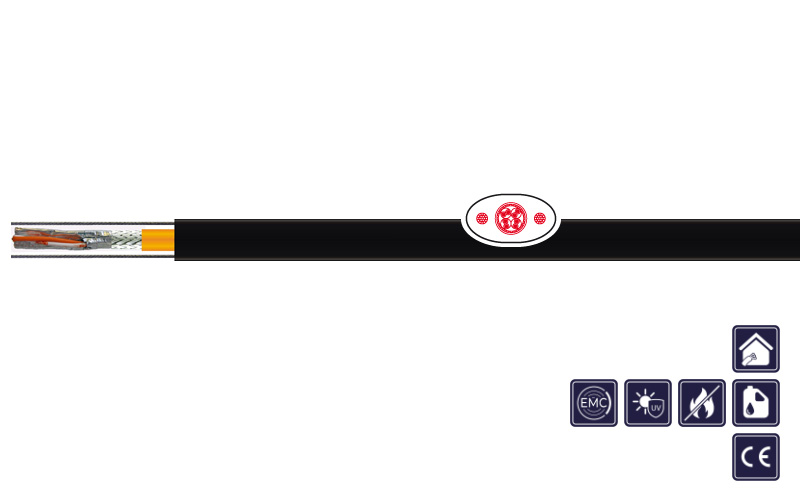

Use of cable

data cable for communication with a personal computer in the elevator car or for networking purposes according to CAT.7 specifications.

Special features

  • low attenuation
  • high crosstalk attenuation

Remarks

  • conform to RoHS
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand, 7x0,16 mm
Core insulation: PE
Core identification: WHBU-BU, WHOG-OG, WHGN-GM, WHBN-BN
Stranding: 2 cores twisted to a pair
Shield: Each pair with plastic clad aluminium foil
Overall stranding: 4 pairs stranded in layer
Supporting element: 2 steel supporting elements in the outer sheath
Inner sheath material: Halogen-free compound, orange
Outer sheath: Halogen-free compound, black
Rated voltage: 30 V
Testing voltage: 0,5 kV
Conductor resistance: Max. 143 Ω / km
Capacity: < 52 nF / km
Characteristic impedance: 90 ± 12 Ω ( 4-100 MHz)
Transfer rate: CAT.7 acc.to DIN EN 50288-4-2
Transfer size: Lossless max. 65m
Attenuation: Acc. to IEC 61156-6
Signal propagation delay: Approx. 4,5 ns / m
Min. bending radius fixed: 8 x d
Min. bending radius moved: 10 x d
Operat. temp. moved min/max: -5 °C / +70 °C
Halogen free: Yes
Burning behavior: Acc. to IEC 60332-2-1
Resistant to oil: Acc. to IEC 60811-404
Suspension height: Max. 120 m
Tensile strength: Max. 1.170 N

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3001619 4 X 2 X 0,14 (AWG 26/7) 8,3 X 15,9 - 9,3 X 16,9 30,0 165,0 black V0: CAT.7 - H-LC Auzugleitung / lift cable
