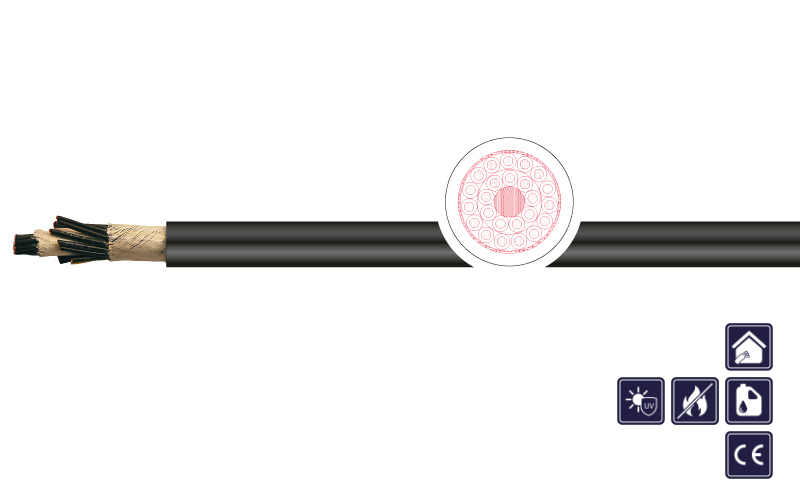

Use of cable

halogen-free lift control cable with textile supporting element for medium mechanical stress. Suitable for dry and humid rooms.

Special features

  • notable protection to people and property value
  • free from lacquer damaging substances and silicone (during production)
  • halogen-free

Remarks

  • conform to RoHS
  • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE
  • We are pleased to produce special versions, other dimensions, core and jacket colours on request.
  • Available accessory you'll find on pages 15.35.XX
Conductor material: Bare copper strand
Conductor class: Acc. to DIN VDE 0295 class 6 resp. IEC 60228 cl. 6
Core insulation: Special thermoplastic compound
Core identification: Acc. to VDE 0293 black with white numerals with GNYE
Stranding: Cores stranded in layers
Outer sheath: PUR
Sheath colour: Black, RAL 9005
Rated voltage: Uo/U 300/500 V
Testing voltage: 3 kV
Current-carrying-capacity: Acc. to DIN VDE, see Technical Guideline
Min. bending radius fixed: 12 x d
Min. bending radius moved: 12 x d
Operat. temp. fixed min/max: -50 °C / +90 °C
Operat. temp. moved min/max: -30 °C / +90 °C
Burning behavior: Self-extinguishing and flame retardant acc. to IEC 60332-2-2
Resistant to oil: Acc. to EN 60811-404
Suspension height: Max. 50 m
Standard: Similar to DIN VDE 0282

Table of items

Product No.
Dimension
[n x mm²]
Outer-Ø
[mm]
Cu-Index
[kg/km]
Weight
[kg/1.000]
Sheath colour
Variant
3001244 18 G 1 17,2 - 18,4 172,8 423,0 black V0: K12YSTU11Y-JZ
3001245 24 G 1 15,5 - 16,7 230,4 430,0 black V0: K12YSTU11Y-JZ
